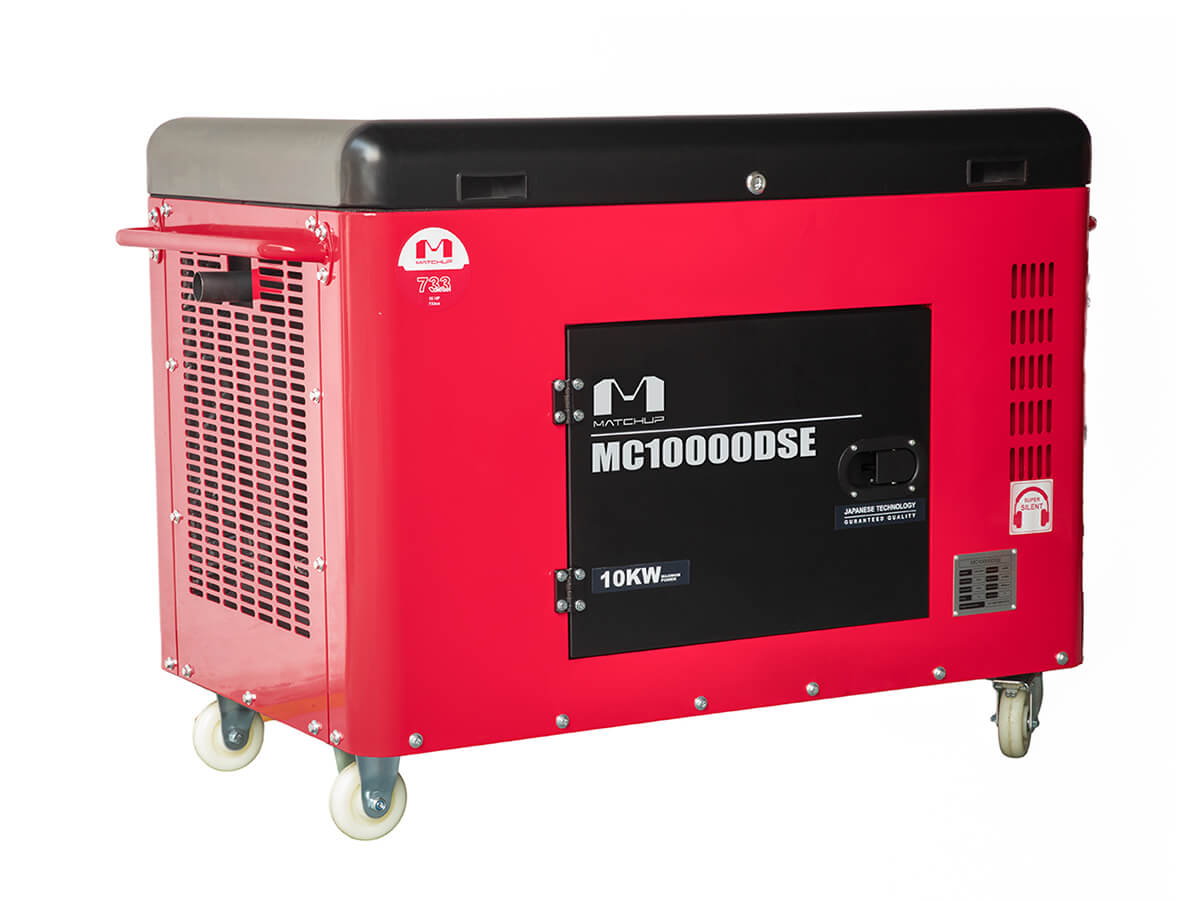

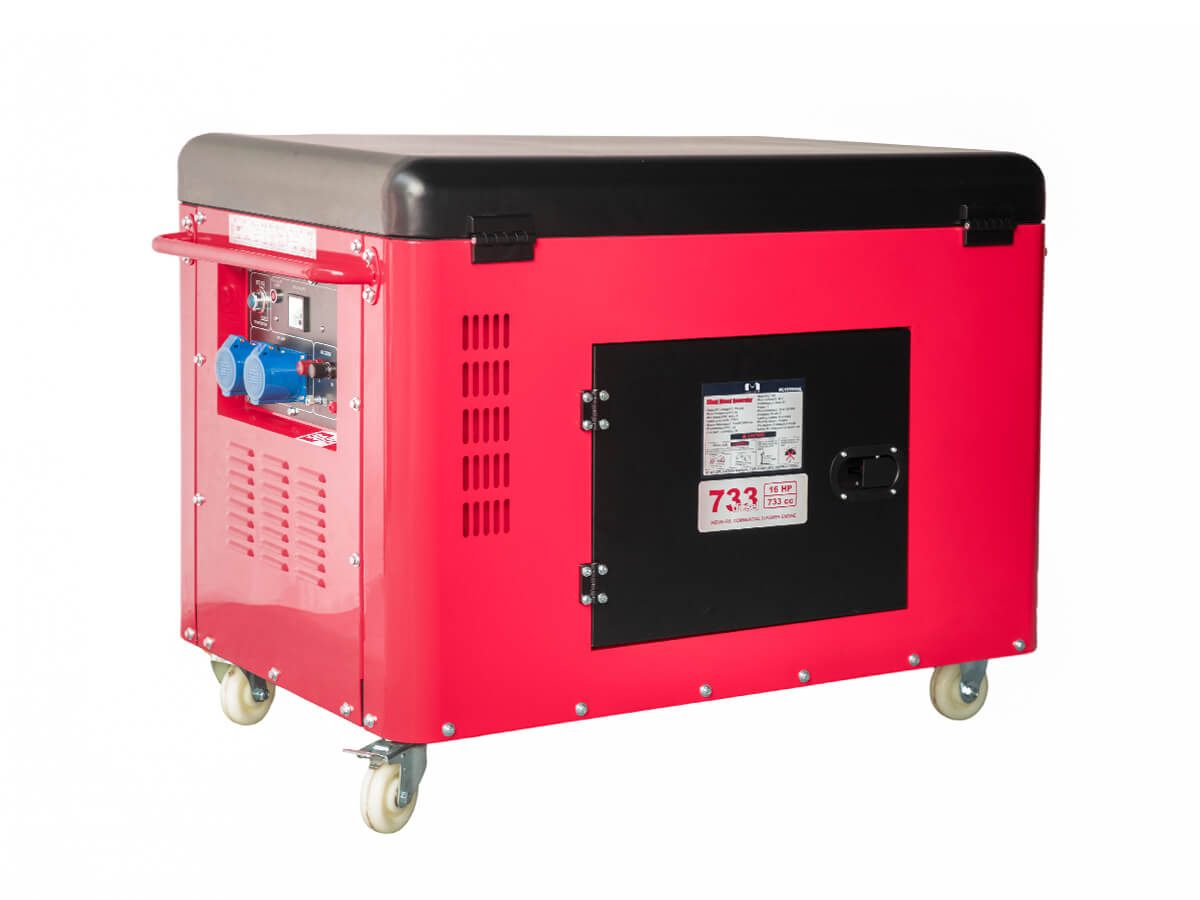

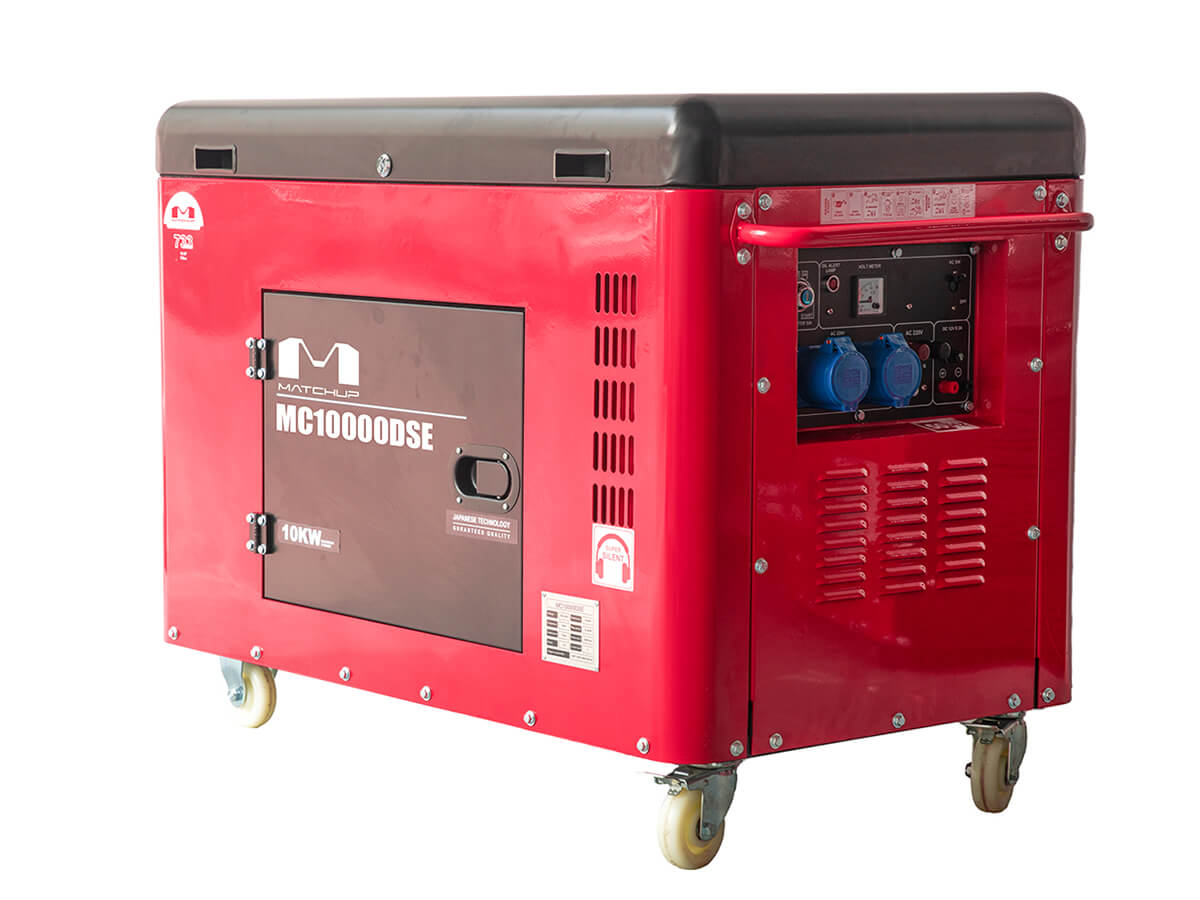

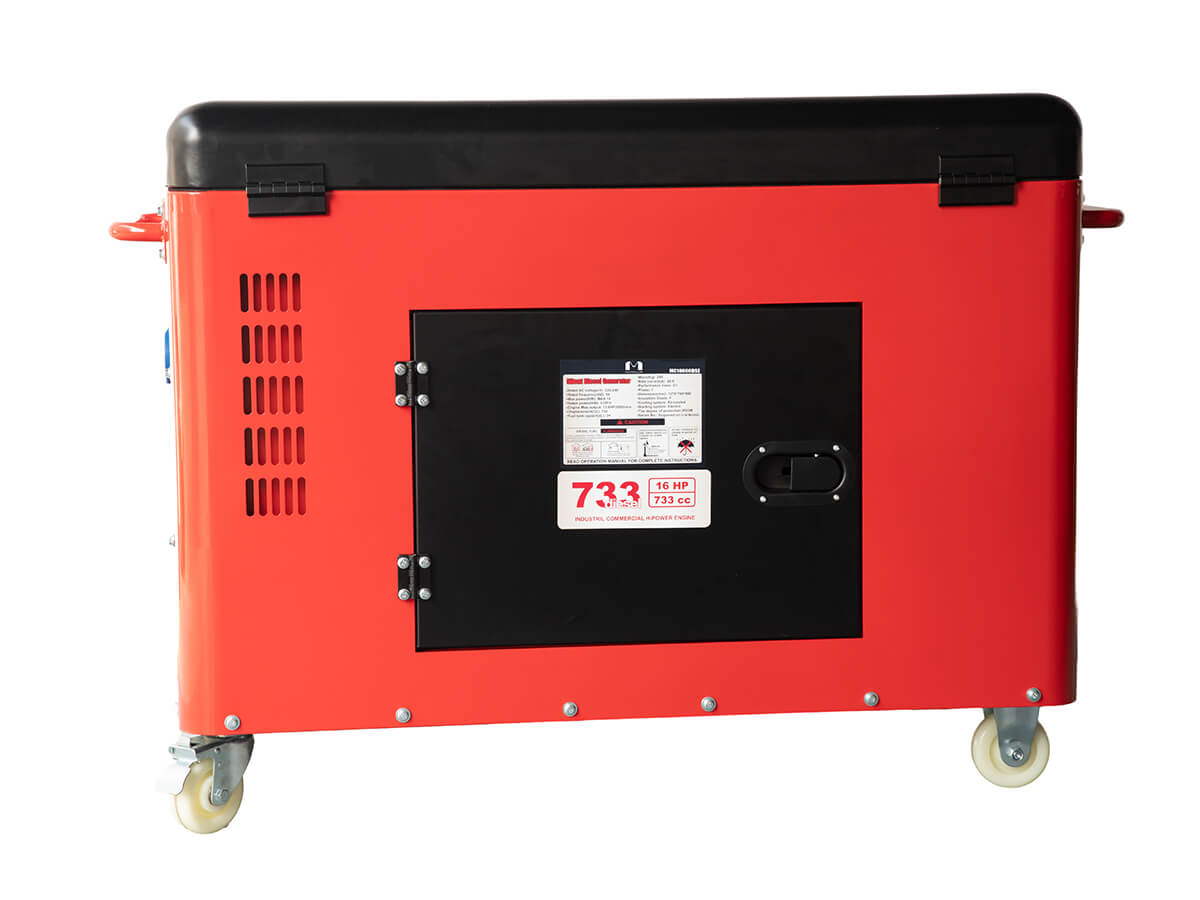

10 kw diesel generator
| MOQ | 5 – 10 Pieces | 10 – 100 Pieces | > = 100 Pieces |
| Discount | 95% | 90% | 80% |
10 kw diesel generator from MATCHUP is an ideal solution for construction sites, industrial applications, and backup power systems where performance and durability are critical.
specification
| frequency [hz] | 50/60 |
| voltage [v] | 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 |
| rated power [kva] | 9.0(11.0) 9.5(11.5) |
| max. power [kva] | 10.0(12.0) 10.5(12.5) |
| phase number | single/three |
| excitation transistorized | self-excitation, brush |
| power factor cos φ | 1.0(0.8) |
| insulation grade | f |
| motor specifications | 245*130 |
| battery specifications | 36ah |
| fuel capacity [l] | 32 |
| noise level [db](@ 7m) | 72 |
| engine model | hp2v80 |
| engine type | v type, 2-cylinder,4-stroke, water-cooled |
| starting system | electric starting |
| broke * stroke [mm] | 2-80*79 |
| displacement [l] | 0.794 |
| compression ratio | 23 |
| rated rotation speed [rpm] | 3000 3600 |
| rated power [kw] | 12.0 14.0 |
| lube [l] | 2.3 |
| fuel type | 0#(summer), -10#(winter) diesel oil |
| overall dimension [mm] ( l*w*h) | 1200*650*760 |
| net weight [kg] | 310 |
description
The 10 kw diesel generator is a heavy-duty generator. The 10 kW (kilowatt) rating means it can provide 10,000 watts of continuous power, suitable for running multiple appliances, tools or equipment simultaneously.
Its powerful MATCHUP hp2v80 engine and self-excited brush system ensures stable power across a wide range of voltage and phase configurations. The generator’s efficient fuel consumption and large 32-litre fuel tank extend run time, minimizing refueling needs and operating costs.
Designed for ease of use and maintenance, this generator features a compact, portable design measuring 1200 x 650 x 760 mm and weighing 310 kg for easy transport and installation. Its low noise level (72 dB at 7 meters) creates a quieter working environment and reduces noise pollution. The electric start system simplifies operation.
Overall, the MATCHUP 10 kw diesel generator combines advanced technology and reliable components to provide a durable, cost-effective power solution.
detail
We understand that businesses need reliable service and support, which is why MATCHUP offers comprehensive after-sales services and solutions. Our customer support team assists with installation, maintenance, and troubleshooting to ensure all your generators continue to perform at their best.
MATCHUP places a high value on your satisfaction, providing tailored solutions to meet your business needs. MATCHUP becomes the smart choice for companies seeking long-term, reliable power solutions.
