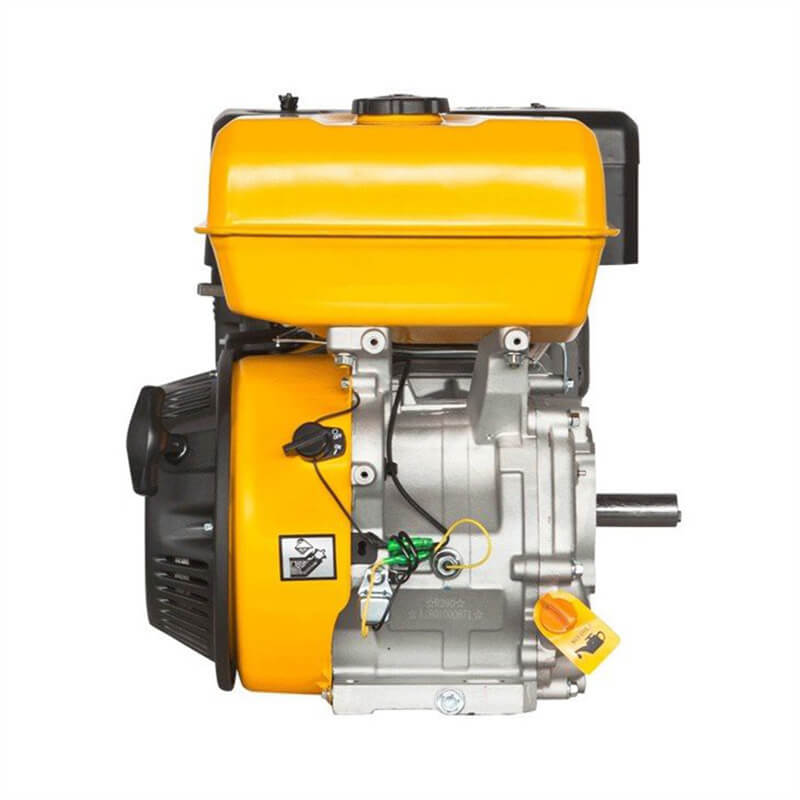

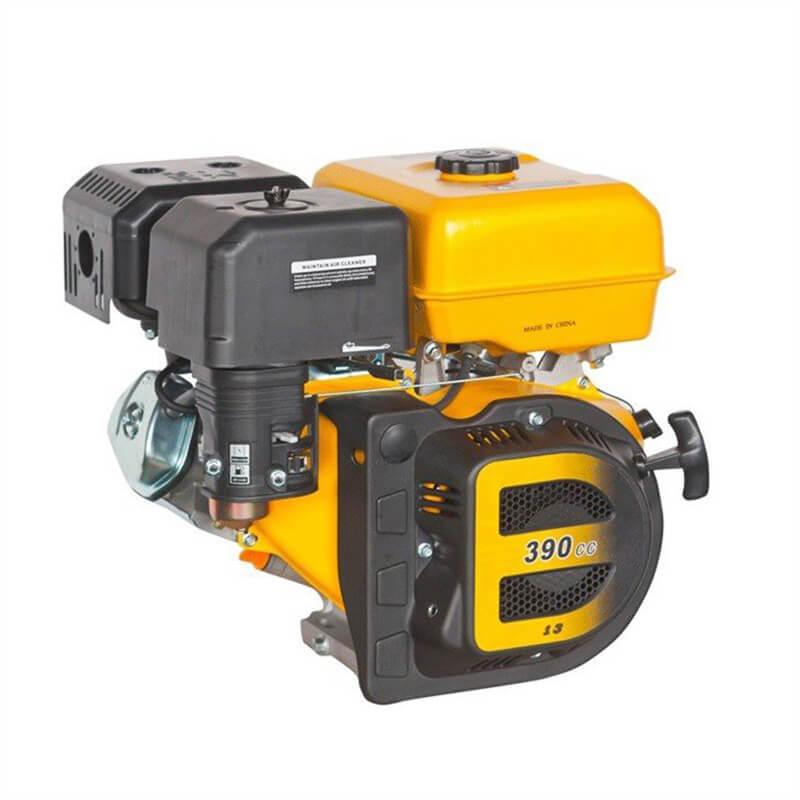

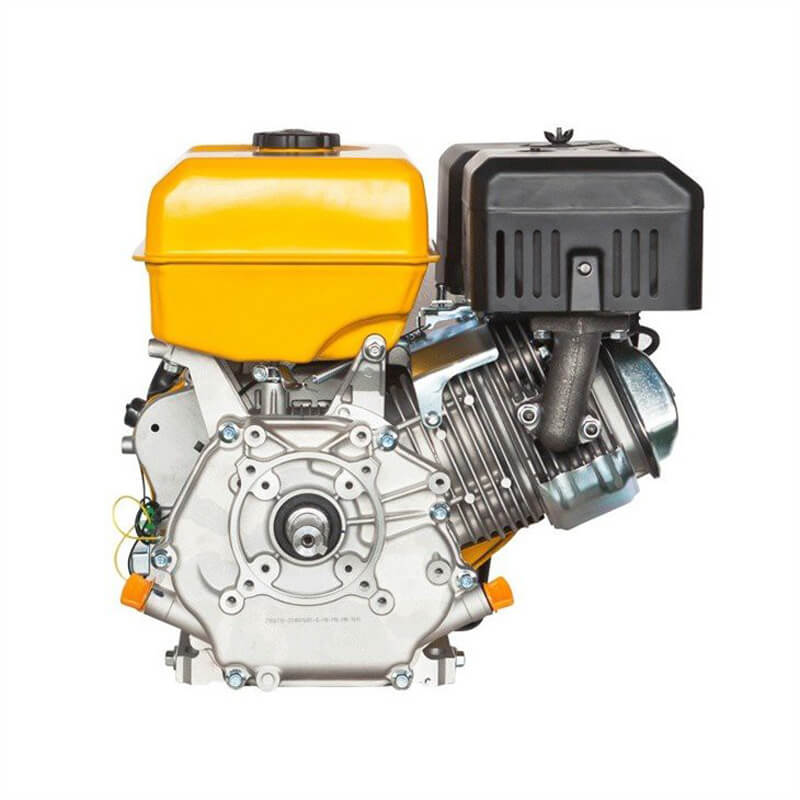

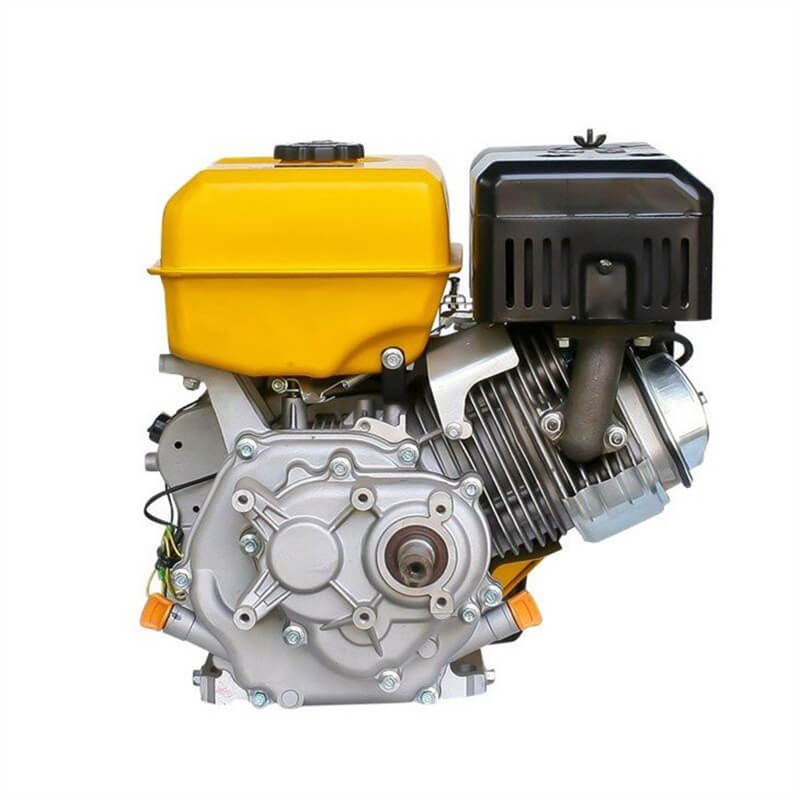

390cc gasoline 1/2 geared-down engine
| MOQ | 5 – 10 Pieces | 10 – 100 Pieces | > = 100 Pieces |
| Discount | 95% | 90% | 80% |
Your best bet! The 390cc gasoline 1/2 geared-down engine by the MATCHUP, a single cylinder engine supplier, delivers high torque at low speeds.
specification
| specification | MC390G |
| engine type | single cylinder, 4-stroke(ohv), 1/2 geared-down |
| bore x stroke | 88×64mm |
| displacement | 389ml |
| compression ratio | 8.0:1 |
| net power | 7.6kw/1800rpm |
| net torque | 46n.m/1250rpm |
| PTO shaft rotation | counterclockwise (horizontal shaft output) |
| ignition system | transistorized magneto ignition |
| starting system | recoil / electric start |
| lubrication system | forced splash |
| carburetor | flat suction valve carburetor |
| governor system | centrifugal mechanical |
| air cleaner | dual elements (paper or foam) |
| oil capacity | 1.1 l |
| fuel tank capacity | 6.8 l |
| dimensions (l x w x h) | 456×415×440 mm |
| net weight | 35 kg |
| fuel consumption | ≤ 374 g/ kw.h |
Advantages
MC390G 390cc gasoline engine features a single-cylinder, four-stroke overhead valve (OHV) design known for its efficiency and durability. It also employs a unique 1/2 reduction mechanism that provides increased torque and control, making it ideal for applications that require stable and powerful output.
Excellent power output
The 390cc large displacement engine is ideal for equipment that requires a powerful power supply. The “1/2 geared-down” design reduces the engine’s output speed by half, increasing torque for heavy-duty applications. It produces a strong net output of 7.6 kw at 1800 rpm and a respectable net torque of 46 Nm at 1250 rpm.
Precise gear reduction
Its 1/2 reduction system optimizes torque conversion and maximizes power efficiency. The inclusion of a centrifugal mechanical speed governor ensures consistent performance, even when operating under varying load conditions. This is critical for machinery that requires high torque rather than high speed, such as pumps, mixers, and various types of construction equipment.
Easy portability
Measuring 456 mm in length, 415 mm in width and 440 mm in height, the 1/2 geared-down engine compact design allows for easy installation and integration into a variety of applications. With a net weight of 35 kg, it is lightweight yet powerful, making it easy to handle and transport.
empowering your equipment with reliable single-cylinder engine
single cylinder engines supplier
MATCHUP is at the forefront of engine manufacturing, and we use strict quality control and advanced manufacturing processes to ensure that each engine meets industry-leading standards. We offer flexible partner options and are committed to supporting your business growth.
