212cc direct injection petrol engine
| MOQ | 5 – 10 Pieces | 10 – 100 Pieces | > = 100 Pieces |
| Discount | 95% | 90% | 80% |

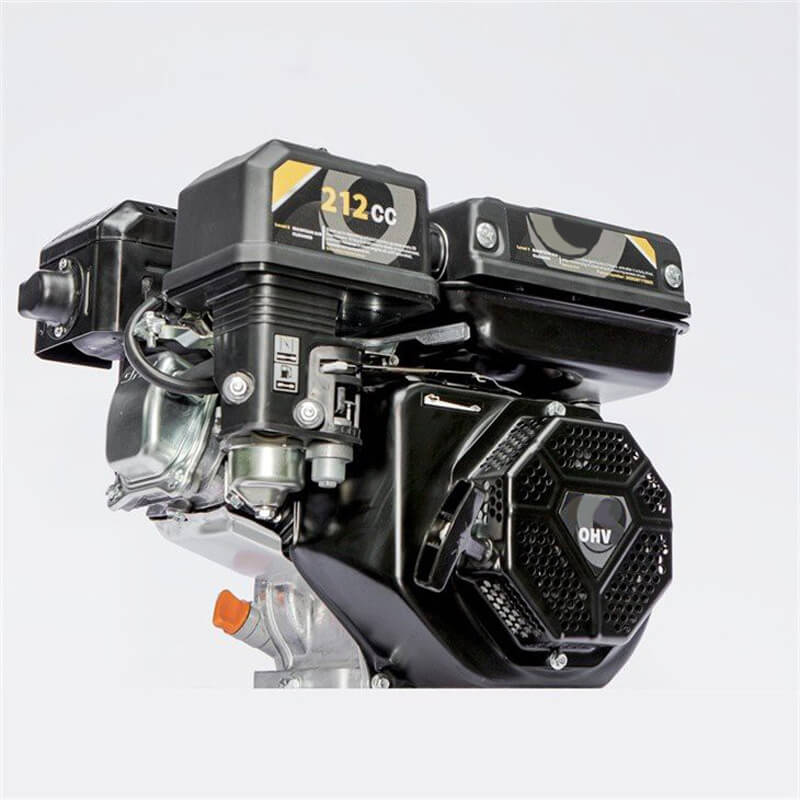

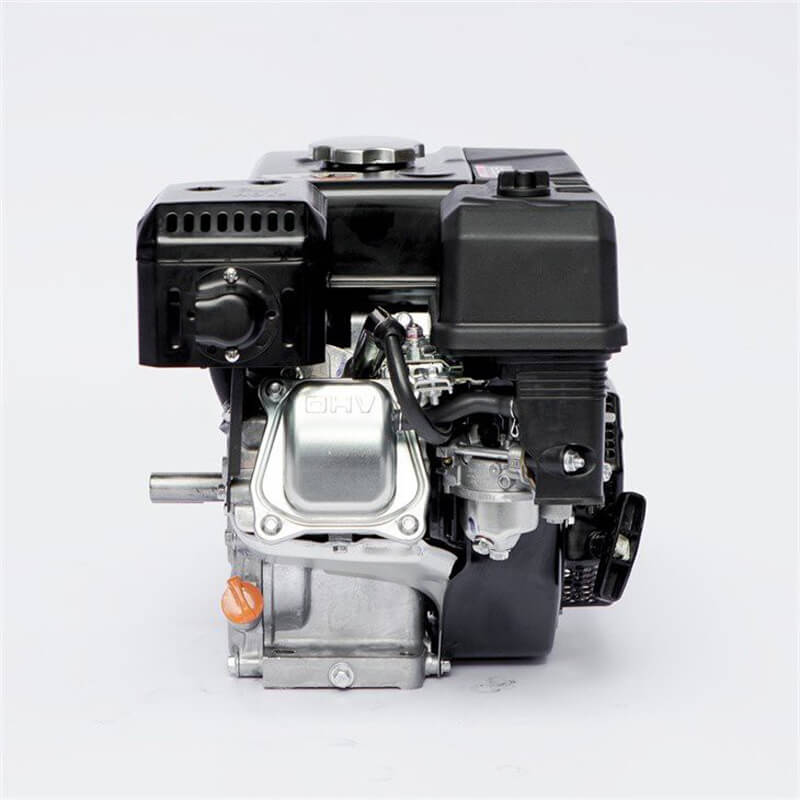

MC210-V is a state-of-the-art 212cc direct injection petrol engine that embodies the cutting-edge innovations of MATCHUP single cylinder engine supply company.
With a range of advanced features including direct injection and a centrifugal mechanical governor system, the MC210-V sets new benchmarks for efficiency, performance and reliability in its class.
specification
| specification | MC210-V |
| engine type | single cylinder, 4-stroke(OHV) |
| bore x stroke | 70×55 mm |
| displacement | 212 ml |
| compression ratio | 9.0:1 |
| net power | 5.0 kw/3600 rpm |
| net torque | 13 n.m/2500 rpm |
| PTO shaft rotation | counterclockwise (horizontal shaft output) |
| ignition system | transistorized magneto ignition |
| starting system | recoil / electric starter |
| lubrication system | forced splash |
| carburetor | flat suction valve carburetor |
| governor system | centrifugal mechanical |
| air cleaner | dual elements (paper or foam) |
| oil capacity | 0.55 l |
| fuel tank capacity | 3.9 l |
| dimensions (L×W×H) | 390×320×345 mm |
| net weight | 15.5 kg |
| fuel consumption | ≤ 395 g/ kw.h |
description
Unlike conventional carburetor engines, the MC210-V uses direct injection technology as a standout feature that ensures precise delivery of fuel directly into the combustion chamber. This innovation improves fuel efficiency by optimizing the air-fuel mixture for better combustion. Benefits include:
Improved fuel efficiency
Direct injection ensures optimal fuel atomization and combustion, reducing fuel consumption to ≤ 395 g/kWh for more economical engine operation.
Increased power output
Precise fuel control allows higher compression ratios of 9.0:1, resulting in more power from the same displacement, with a net power of 5.0 kW at 3600 rpm, providing powerful performance for a wide range of applications.
Reduced emissions
Improved combustion efficiency reduces emissions, contributing to a cleaner environment and compliance with stricter emission standards.
212cc direct injection petrol engine also incorporates the best of modern innovation and excels in multiple areas:
- Versatile: The lightweight design (15.5 kg) is ideal for applications with limited space
- Easy to use: The dual start system and the well-designed air purification system ensure that the engine is easy to start and maintain.
- High Torque Output: 13 Nm of torque at 2500 rpm provides ample power for demanding tasks.
empowering your equipment with reliable single-cylinder engine
single cylinder engine supply company
Whether for industrial or recreational use, 212cc petrol engine is the first choice of discerning users around the world for its outstanding performance and long service life. MATCHUP will provide 1-year warranty covering the direct injection petrol engine and have after hours technical help and full parts support.
Besides, this MATCHUP petrol engine is EPA and CARB approved for safe mandated use. MATCHUP has a first-class logistics and transportation team, and fuel shut-off for safe transport.
Dealer can order MC210-V engine for selling to those who use it on: pressure washers, cement mixers, compressors, log splitters, mowers, vacuums, tillers, water pumps, chipper/shredders, generators, and blowers. Contact us to get more product information.
