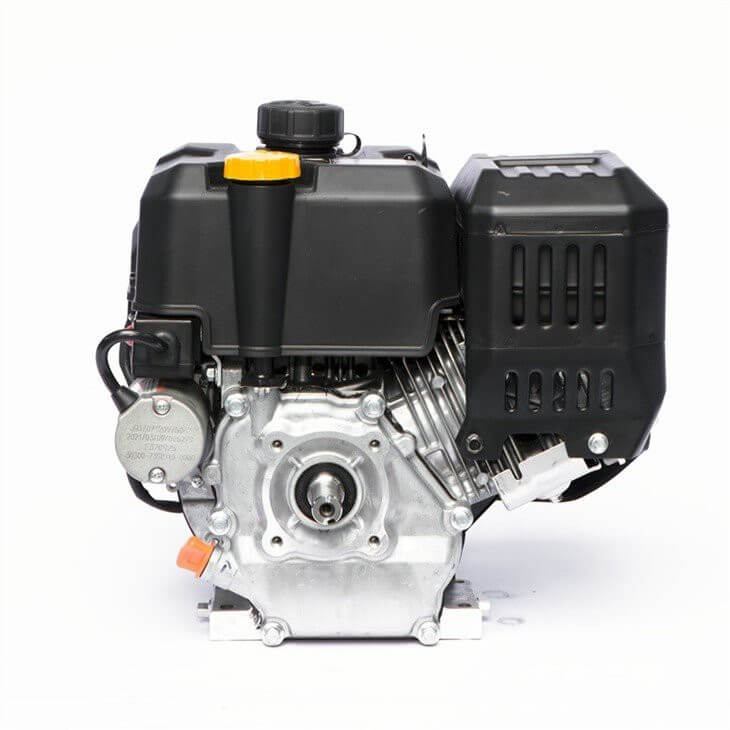

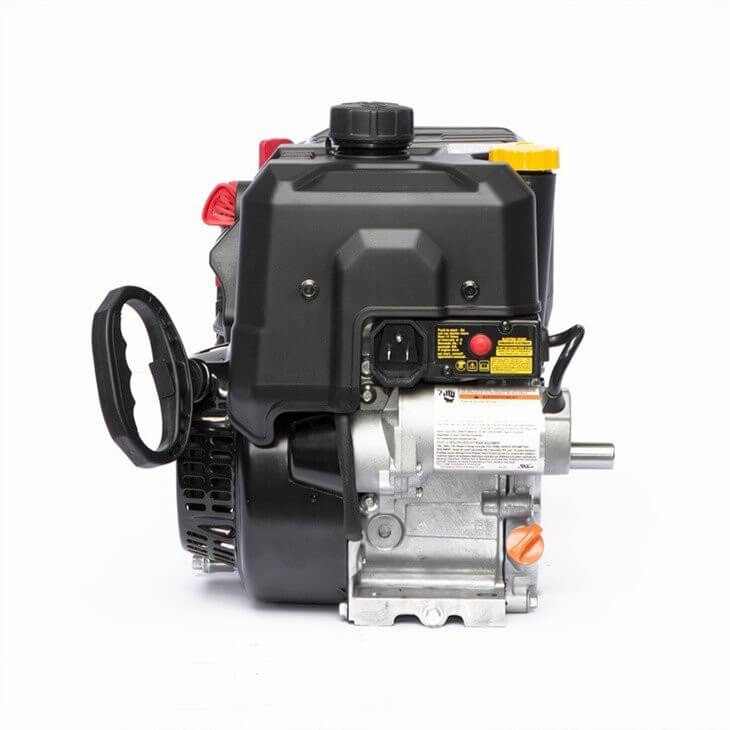

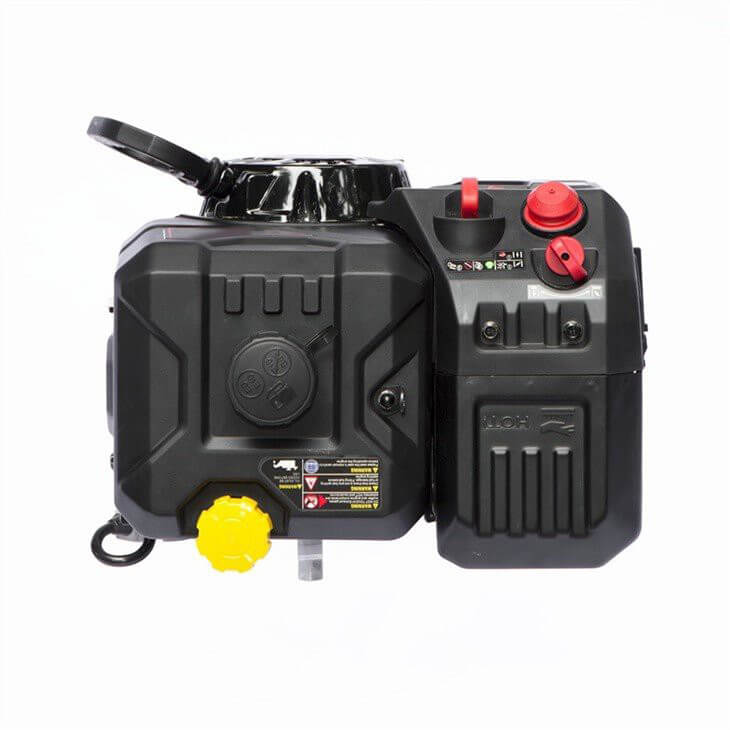

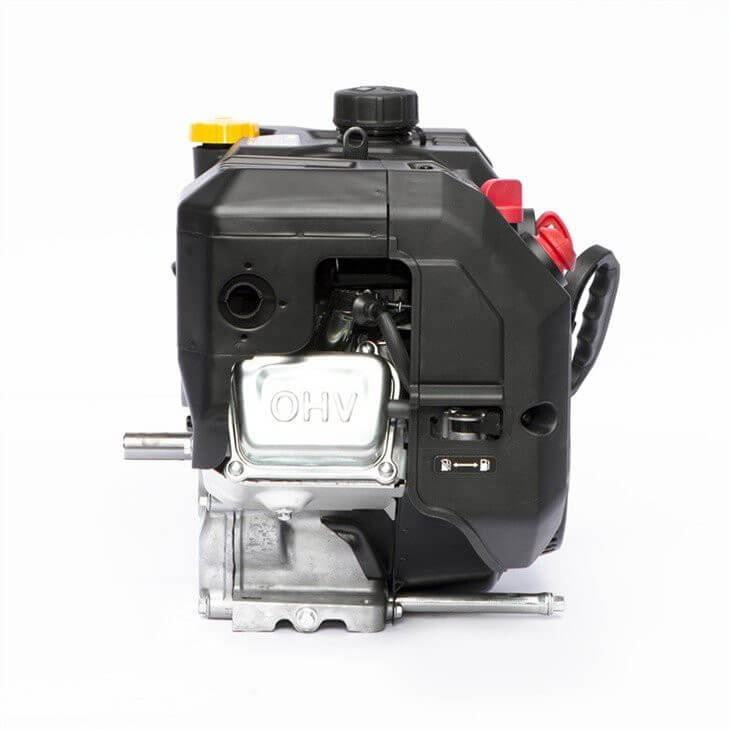

single cylinder 209cc horizontal gas engine
| MOQ | 5 – 10 Pieces | 10 – 100 Pieces | > = 100 Pieces |
| Discount | 95% | 90% | 80% |
single cylinder 209cc horizontal gas engine – a masterpiece from the MATCHUP single-cylinder engine factory, simplifies maintenance operations for users.
specification
| specification | MC210-S |
| engine type | single cylinder, 4-stroke(OHV) |
| bore x stroke | 74.5×48 mm |
| displacement | 209 ml |
| compression ratio | 8.2:1 |
| net power | 4.3 kw/3600 rpm |
| net torque | 12.4 n.m/2500 rpm |
| PTO shaft rotation | counterclockwise (horizontal shaft output) |
| ignition system | recoil starter |
| starting system | electric starter |
| lubrication system | forced splash |
| carburetor | flat suction valve carburetor |
| governor system | centrifugal mechanical |
| air cleaner | foam |
| oil capacity | 0.5l |
| fuel tank capacity | 3.3l |
| dimensions (L×W×H) | 360×290×325 mm |
| net weight | 12.5 kg |
| fuel consumption | ≤ 395 g/ kw.h |
description
This engine is designed to outperform the competition in overall performance, rugged power and lower maintenance, leading to a reduced overall total cost of ownership.
Why is the MC210-S different?
A single cylinder 209cc horizontal gas engine is an internal combustion engine with one cylinder that displaces 209 cubic centimeters (cc) of air/fuel mixture. “Single cylinder” means it has only one piston working to produce power, making it simpler and lighter than multi-cylinder engines. The single-cylinder design of horizontal gas engine results in a simpler structure with fewer moving parts and less wear and tear on the machine, which translates into fewer repairs and lower maintenance costs.
The engine is designed with a horizontal orientation, which means that the cylinders are placed horizontally rather than vertically. This type of engine is often used in small machinery and equipment.
Delivering impressive power and torque, this engine also features a recoil and electric starter for ease of use. The starting sequence requires less effort and is tested to perform down to 0°F, providing reliable, easy starting in all seasons. An advanced lubrication system increases engine life and efficiency.
Designed with fuel efficiency in mind, the MC210-S allows for longer runs and fewer refueling thanks to its optimized fuel consumption, minimizing downtime and increasing ROI. Includes 3-in-1 controls that control throttle, ignition, and fuel to prevent mixing of fuel and oil during transport. Plus, this engine is designed for safety with the fuel shut-off valve and automatic low oil shut-off sensor.
With user-friendly features like a foam air cleaner and an easy-to-maintain carburetor, this engine is ideal for applications where reliability and ease of use are critical.
Features standard Integrated Cyclonic Air Filtration that doubles your equipment’s air filter replacement intervals to 600 hours.
empowering your equipment with reliable single-cylinder engine
MATCHUP will provide:
Attract more customers and enhance your reputation as a quality, reliable seller with the MATCHUP single cylinder generator factory.
Dealer locator
World-class parts delivery, industry-leading global warranties, and unmatched service and training keep engines out of the shop and help you earn good reviews.
Commercial limited warranty
Three-year engine warranty for all applications. See operator’s manual and contact the service team for full warranty details.
Certificate support
Meets EPA Phase 3 exhaust and evaporative emissions standards. Whether you’re a dealer with import experience or not, you can purchase with confidence.
Technology updates
Focused on key areas of performance critical to increasing productivity, including starting, maintenance intervals, service and support, and total cost of ownership.
